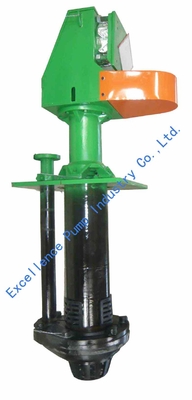

EVR-100R rubber casing vertical sump slurry pump for power and building materials
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | vertical sump pump,vertical pumps,vertical slurry pump |
||
|---|---|---|---|
EVR-100R rubber casing vertical sump slurry pump for power and building materials
Excellence Pump Industry Co., Ltd is a professional slurry pump manufacturer in China. With the accumulation and development of years, we have formed a complete system of slurry pump design, selection, application and maintenance.
Introduction:
This sump pump casing of type EVM pumps are made of wear-resistant metal. The wear parts are made of high chromium for the EVM series and are rubber lined for the EVR series. According to liquid surface of the slurry pool, the vertical slurry pump transmission shaft and suction pipe could be chosen. The sump pump could operate under the best condition with different speed.
Application:
The vertical slurry pumps are designed for delivering abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection .
Performance Chart:
|
Pump Model |
EVM Vertical Slurry pump |
||||||
|
Allowable Max.Power |
Clear Water Performance |
||||||
|
Capacity Q |
Head |
Speed |
Eff. |
Impeller Dia. |
|||
|
m3/h |
l/s |
||||||
|
EVR-40P |
15 |
17-43.2 |
4.7-12 |
4-28.5 |
1000-2200 |
40 |
188 |
|
EVR-65Q |
30 |
18-114 |
5-32 |
5-31.5 |
750-1500 |
60 |
280 |
|
EVR-100R |
75 |
54-289 |
15-80 |
5-36 |
500-1200 |
62 |
370 |
|
EVR-150S |
110 |
108-479 |
30-133 |
8.5-40 |
500-1000 |
52 |
450 |
|
EVR-200S |
110 |
189-891 |
52.5-247.5 |
6.5-37 |
400-850 |
64 |
520 |
|
EVR-250T |
200 |
360-1152 |
100-320 |
7-33 |
400-750 |
60 |
575 |
|
EVR-300T |
200 |
540-1548 |
150-430 |
5.5-26 |
350-700 |
60 |
580 |
