EVM-150S High pressure mining metal casing vertical slurry pump for building material

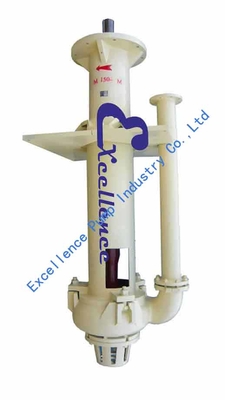

Large Image : EVM-150S High pressure mining metal casing vertical slurry pump for building material Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Excellence
Certification:	ISO9001:2008;CE;Gost-R
Model Number:	EVM-150S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden Package
Delivery Time:	Within 30 days
Payment Terms:	T.T or decided by users
Supply Ability:	3000/Year

Contact Now

Detailed Product Description

High Light:

vertical pumps

vertical sump pump

vertical slurry pumps

EVM-150S High pressure mining metal casing vertical slurry pump for building material

Excellence Pump Industry Co., Ltd is a professional slurry pump manufacturer in China. With the accumulation and development of years, we have formed a complete system of slurry pump design, selection, application and maintenance.

Application:

The vertical slurry pumps are designed for delivering abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection .

Performance Chart:

Pump Model	EVM Vertical Slurry pump
	Allowable Max.Power	Clear Water Performance
		Capacity Q		Head H(m)	Speed n(r/min)	Eff. η%	Impeller Dia.
		m³/h	l/s	Head H(m)	Speed n(r/min)	Eff. η%	Impeller Dia.
EVM-40P	15	17-43.2	4.7-12	4-28.5	1000-2200	40	188
EVM-65Q	30	18-114	5-32	5-31.5	750-1500	60	280
EVM-100R	75	54-289	15-80	5-36	500-1200	62	370
EVM-150S	110	108-479	30-133	8.5-40	500-1000	52	450
EVM-200S	110	189-891	52.5-247.5	6.5-37	400-850	64	520
EVM-250T	200	360-1152	100-320	7-33	400-750	60	575
EVM-300T	200	540-1548	150-430	5.5-26	350-700	60	580

Introduction:

This sump pump casing of type EVM pumps are made of wear-resistant metal. The wear parts are made of high chromium for the EVM series and are rubber lined for the EVMR series. According to liquid surface of the slurry pool, the vertical slurry pump transmission shaft and suction pipe could be chosen. The sump pump could operate under the best condition with different speed.

EVM-150S High pressure mining metal casing vertical slurry pump for building material 0
